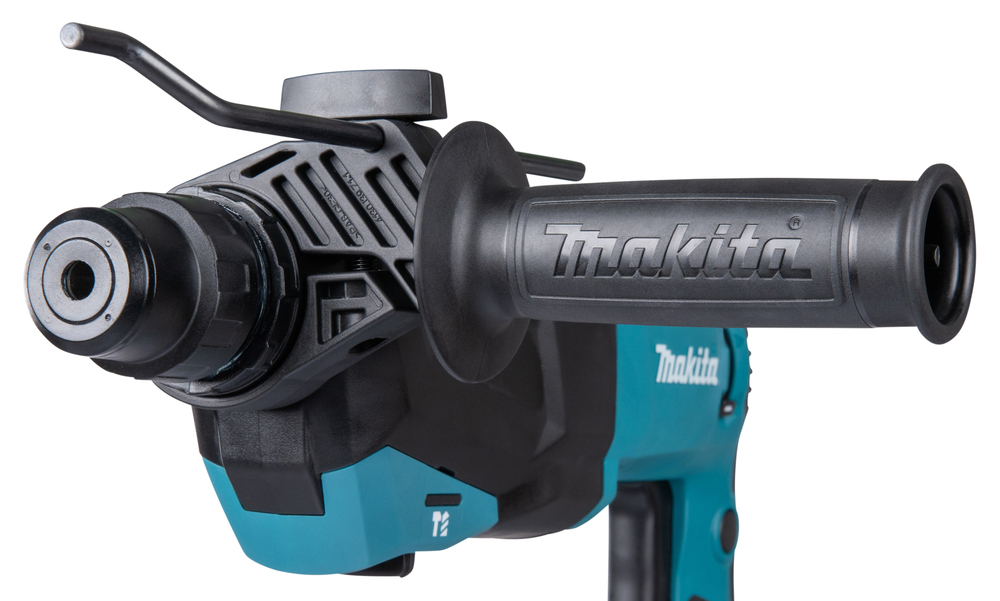

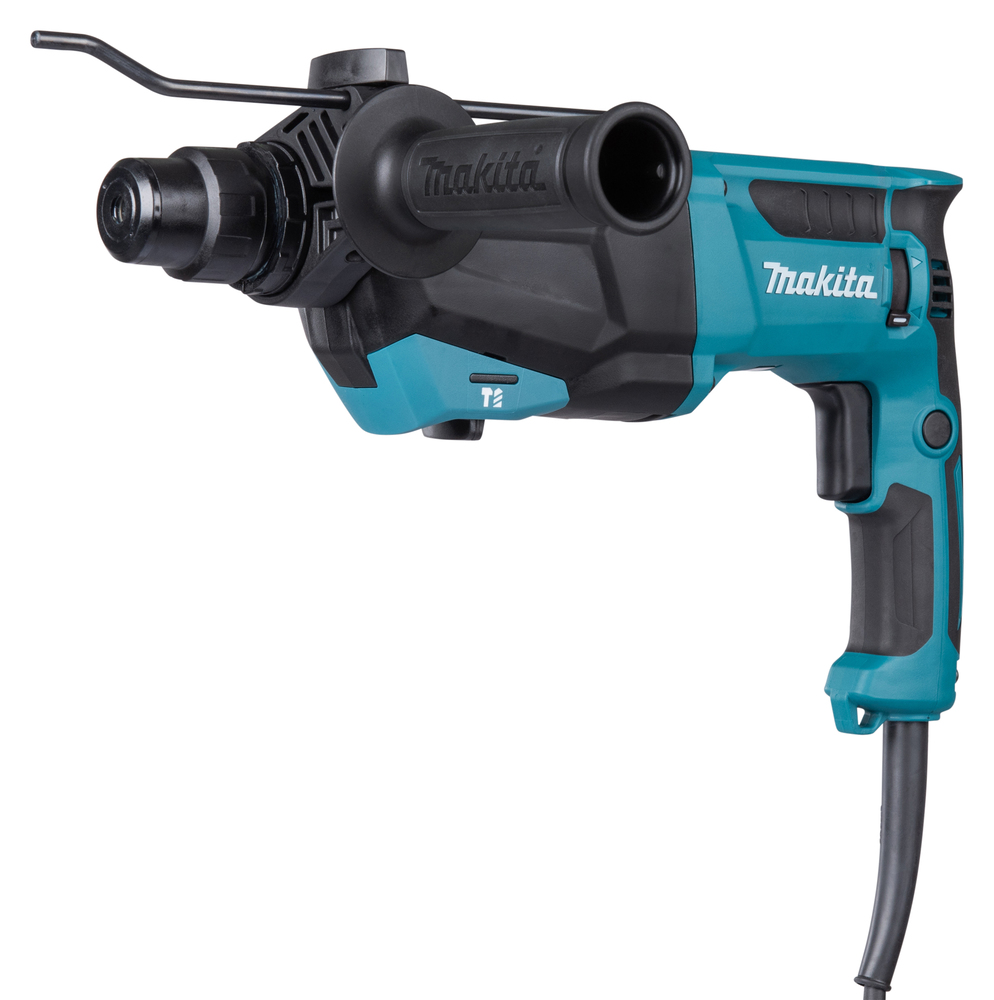

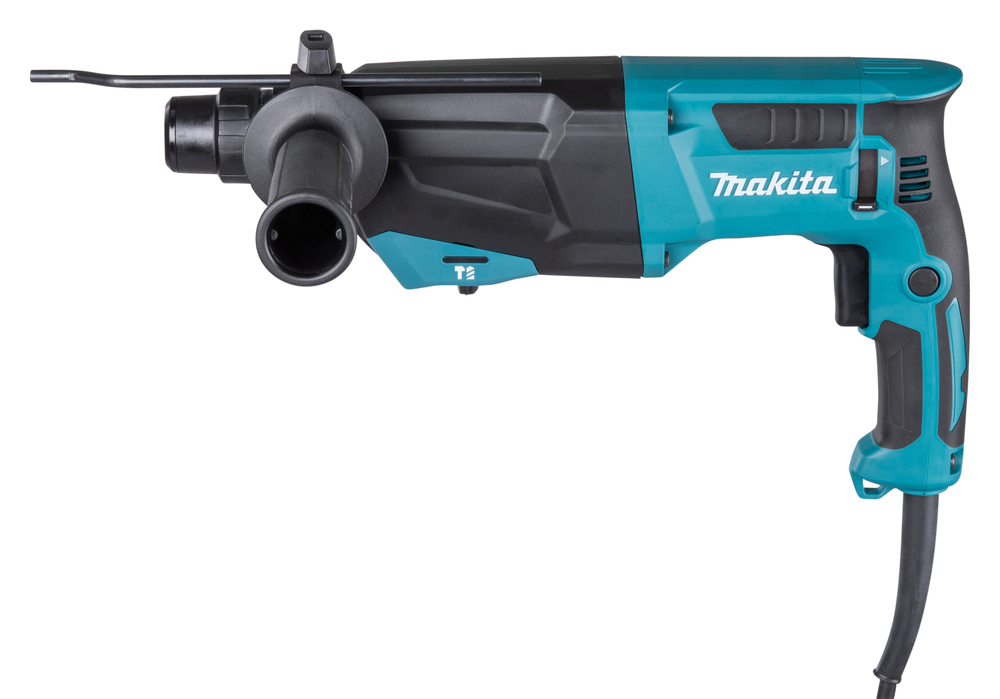

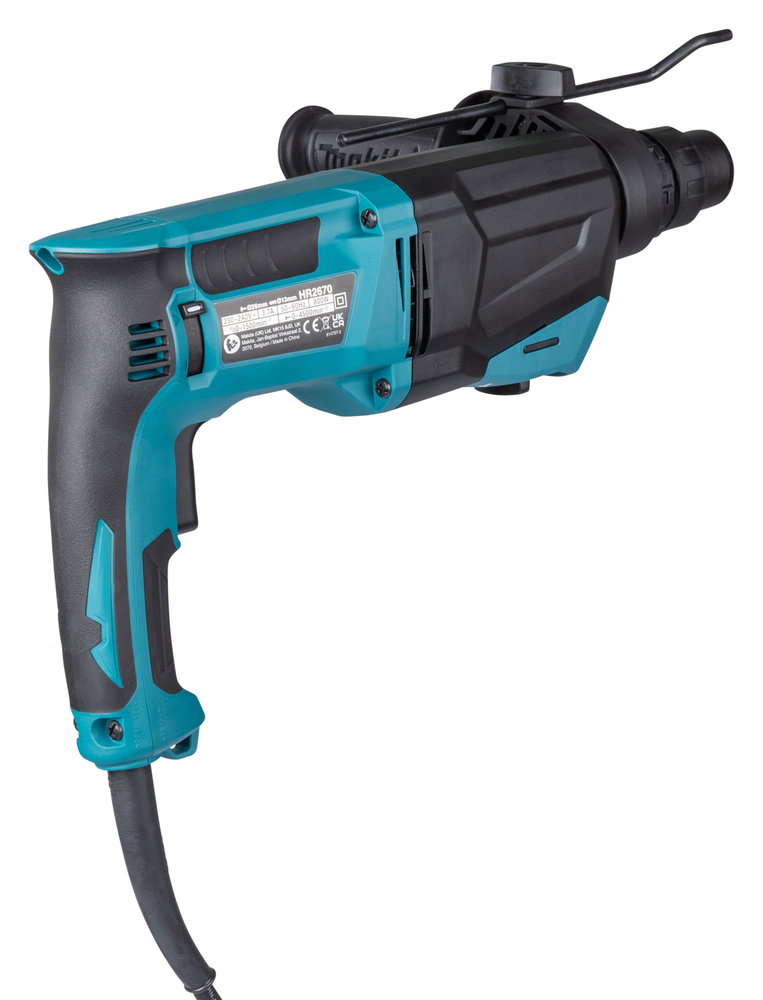

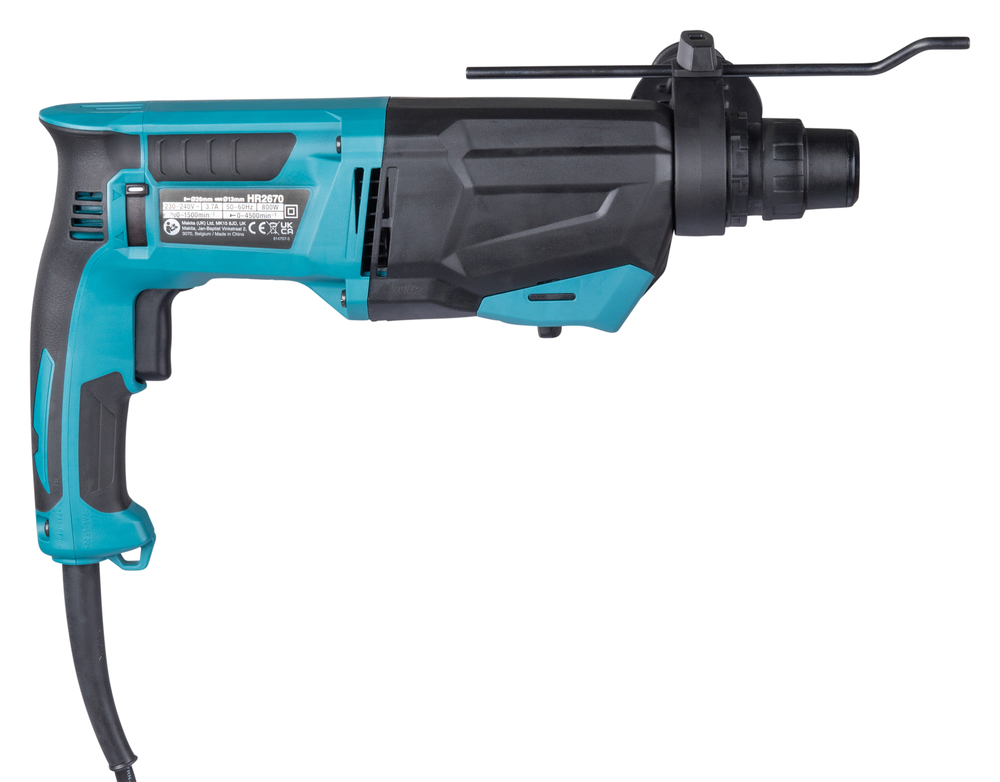

HR2670 26mm Rotary Hammer 800W

Download HR Image

Download Exploded View

PRODUCT DETAILS

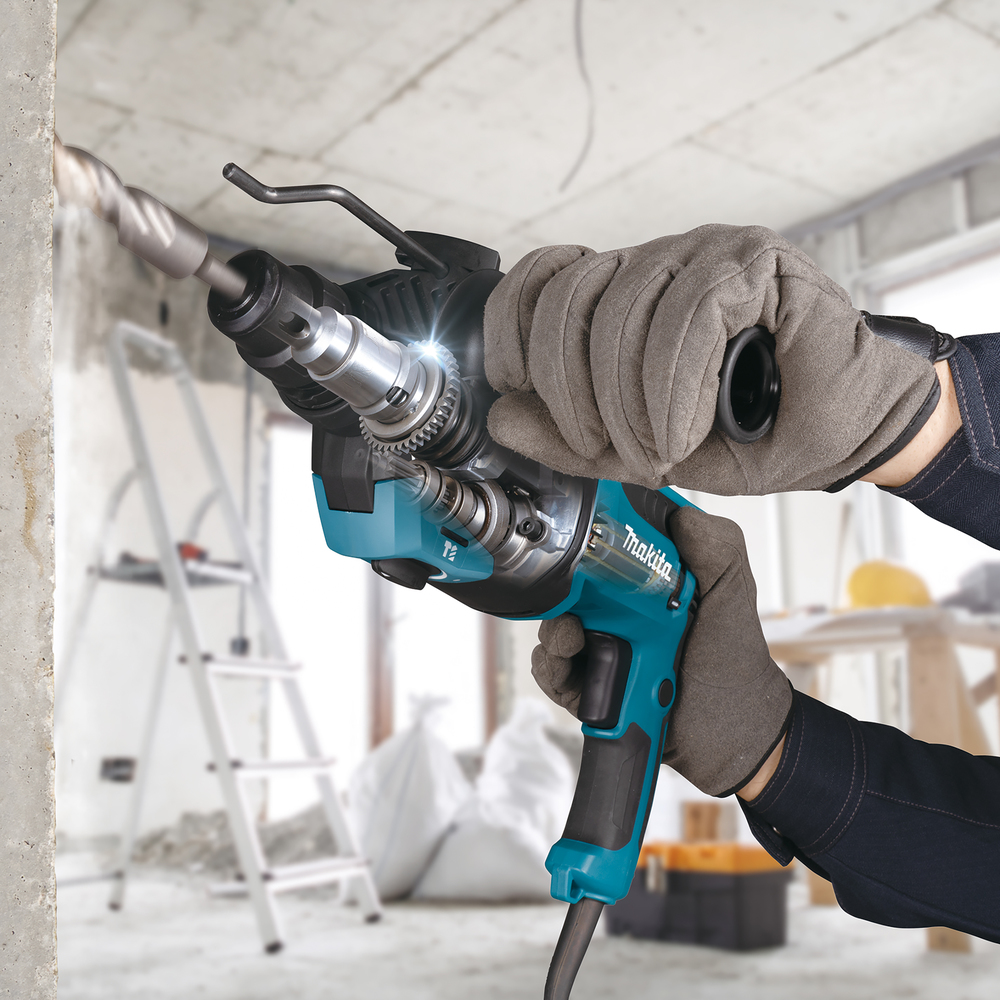

The Makita HR2670 is a heavy-duty 800W SDS-PLUS combination rotary hammer drill engineered to withstand rigorous daily site use across concrete, masonry, brick, wood, and steel. Equipped with an upgraded pneumatic hammer mechanism delivering 3.0 Joules of impact energy and up to 4,500 blows per minute, it speeds through drilling holes up to 26 mm in concrete and core drilling up to 80 mm with diamond core bits. It features 3 operating modes selectable via an easy-access dial: Rotation Only, Rotation with Hammering, and Hammering Only for light chiseling and channel creation. A built-in torque limiter automatically disengages drive gears if the bit snags in reinforcement, preventing hazardous tool kickback. Includes variable speed trigger control, reverse mode with full forward torque, and a 4.0m industrial rubber power cord.

  • Robust 800W motor produces a hard-hitting 3.0 Joules of impact energy for rapid drilling in hard concrete.
  • Versatile 3-mode selector: Rotation Only, Hammering with Rotation, and Hammering Only (chiselling).
  • Torque limiter safety mechanism disengages drive gears immediately if the bit jams to protect user and tool.
  • SDS-PLUS sliding chuck allows instant, one-touch drill bit and chisel replacement.
  • Reversing switch lever utilizes brush holder unit to deliver equal speed and torque in both forward and reverse.
  • Recessed continuous lock-on button reduces finger fatigue during extended drilling sessions.
  • Generous 4.0-metre heavy-duty power cable improves site maneuverability without requiring immediate extension leads.
Continuous Rating Input 800 W
Impact Energy 3.0 Joules
Shank Type SDS-PLUS
Capacity – Concrete (TCT Bit) 26 mm (1″)
Capacity – Core Bit 68 mm (2-11/16″)
Capacity – Diamond Core Bit 80 mm (3-1/8″)
Capacity – Wood / Steel Wood: 32 mm / Steel: 13 mm
Blows Per Minute (BPM) 0 – 4,500 BPM
No Load Speed (RPM) 0 – 1,500 RPM
Dimensions (L x W x H) 362 mm x 77 mm x 207 mm
Net Weight 2.8 – 3.1 kg
Power Supply Cord 4.0 m
