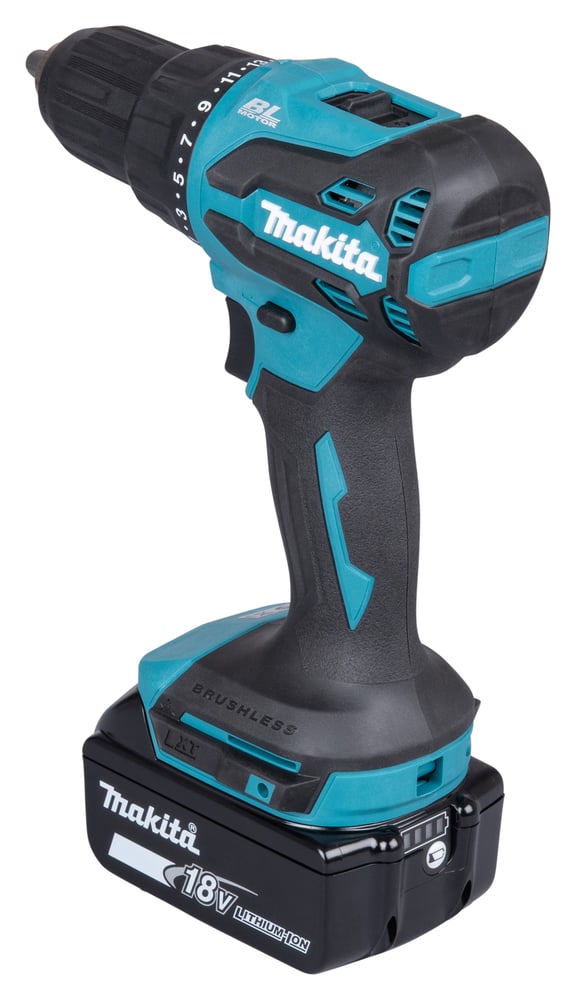

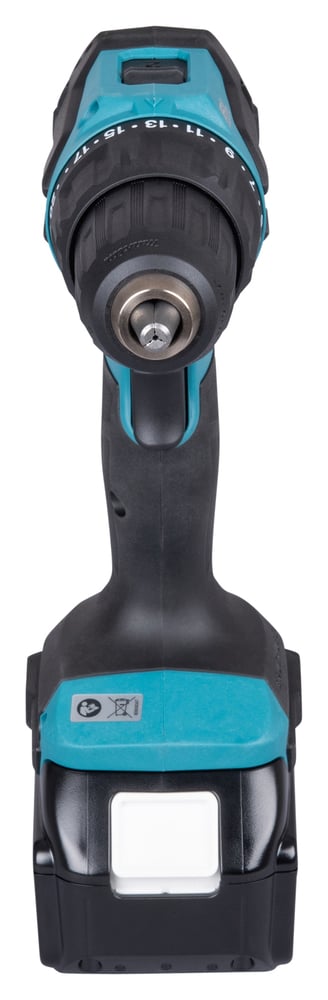

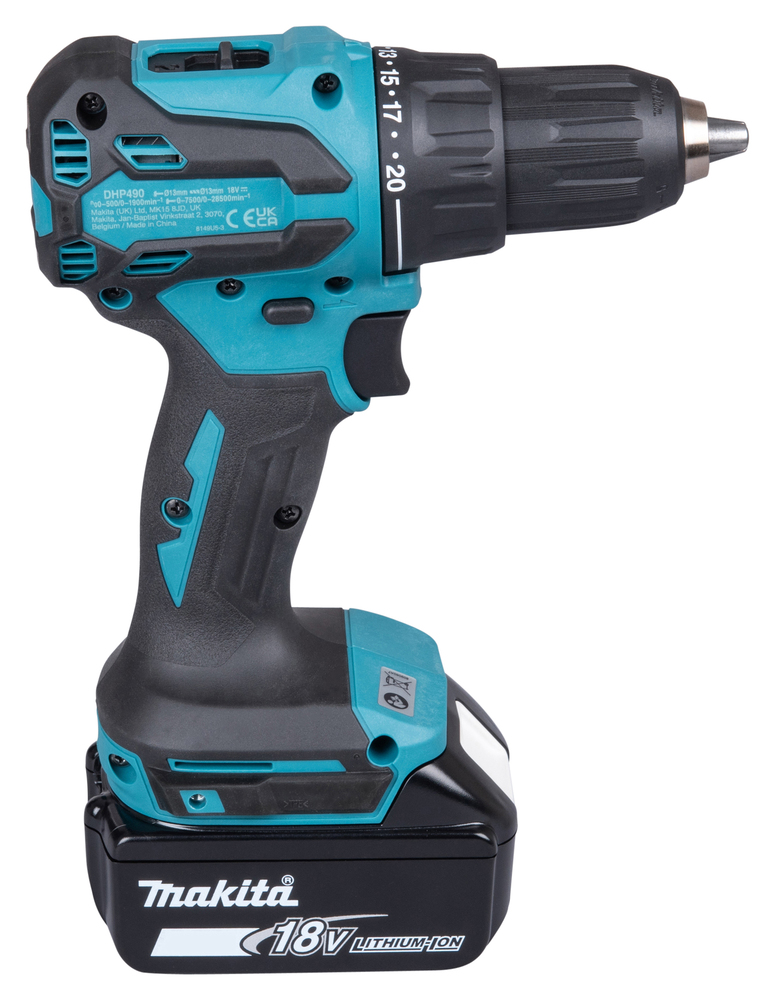

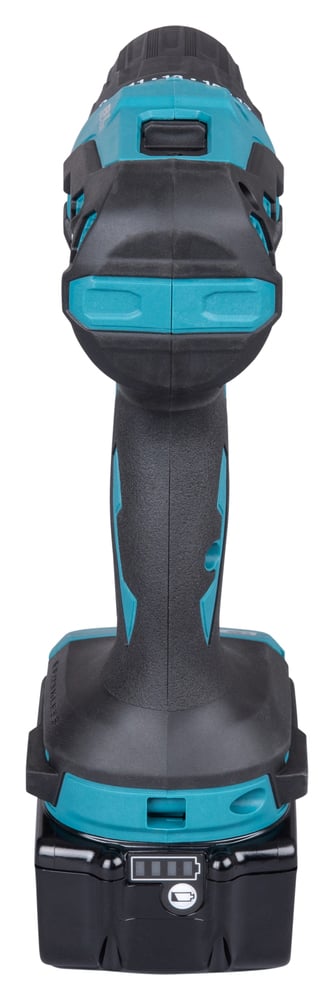

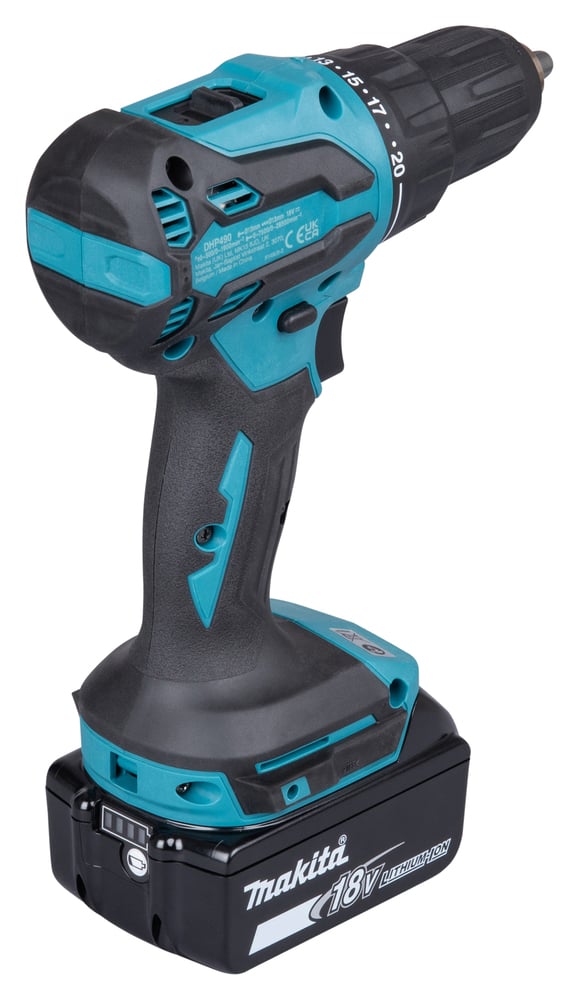

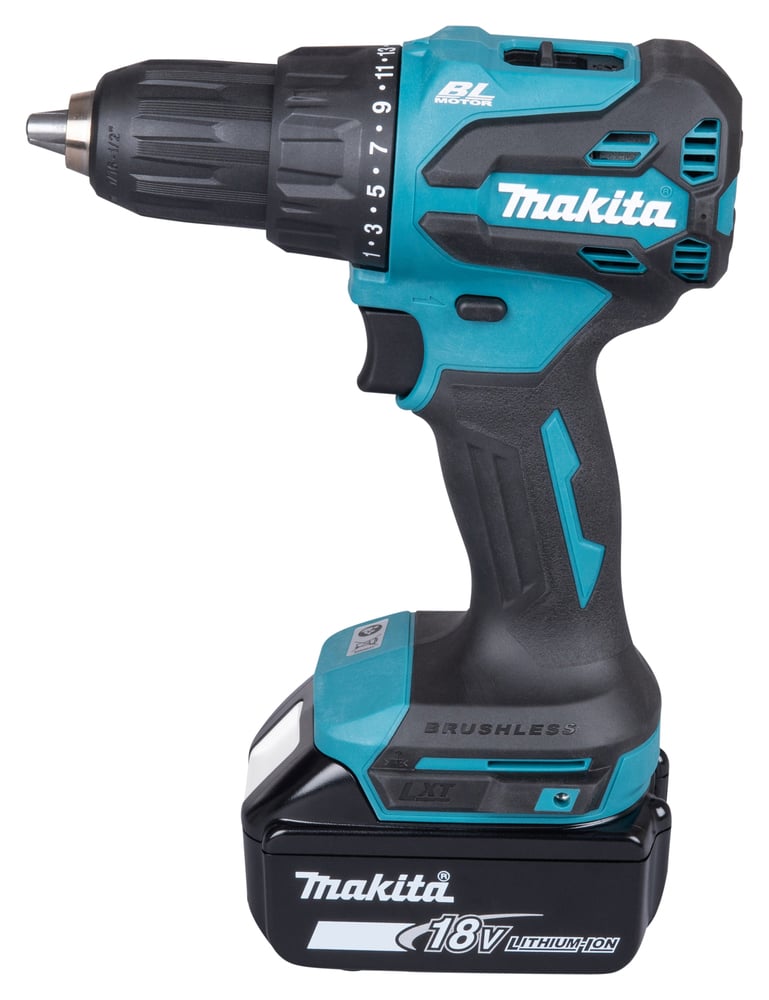

DHP490Z 18V LXT Brushless Cordless Hammer Driver Drill

Download HR Image

Download Exploded View

PRODUCT DETAILS

The Makita DHP490Z is a compact, robust 18V LXT cordless hammer driver drill powered by an advanced brushless motor, engineered to deliver exceptional balance, runtime, and power for daily professional trade tasks. Producing up to 65 N·m of maximum torque and a high no-load speed of 1,900 RPM, it effortlessly handles heavy-duty drilling and fastening across masonry, timber, and steel. It offers versatile 3-mode operation allowing quick switching between Drilling, Hammer Drilling, and Screwdriving. Features a heavy-duty 13mm keyless single-sleeve chuck for quick bit installation, an integrated LED job light with pre-glow and after-glow functions, a variable speed trigger, and Makita’s eXtreme Protection Technology (XPT) providing engineered resistance against dust and water ingress in challenging site conditions. Bare unit (battery and charger sold separately).

  • High-efficiency brushless motor delivers 65 N·m max torque and extended operational runtime per charge.
  • 3-Mode operation: Drilling, Hammer Drilling, and Screwdriving for wide material adaptability.

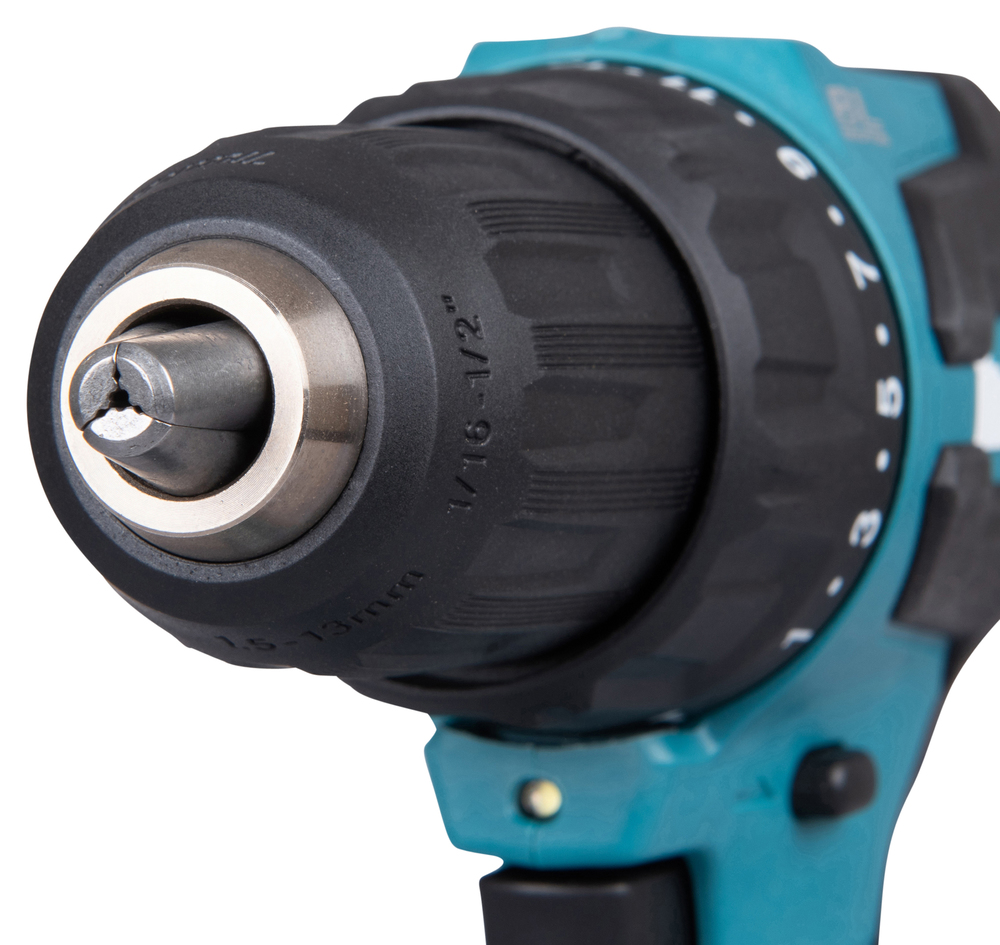

  • Heavy-duty 13mm (1/2″) keyless single-sleeve chuck allows fast, one-handed bit changes.
  • 2-Speed all-metal mechanical gearbox provides 0&500 RPM for high-torque fastening and 0&1,900 RPM for fast drilling.
  • High impact rate of up to 28,500 IPM for fast drilling progress in brick, masonry, and stone.
  • eXtreme Protection Technology (XPT) provides enhanced resistance against airborne dust and splashing water.
  • Ergonomically contoured rubberized soft grip ensures maximum control and operator comfort.
Voltage 18V LXT®
Motor Type Brushless (BL)
Max Torque 65 N·m (580 in.lbs)
Max Fastening Torque Hard: 50 N·m / Soft: 27 N·m
Chuck Capacity 1.5 – 13 mm (1/16″ – 1/2″)
No Load Speed (RPM) High: 0 – 1,900 / Low: 0 – 500
Impacts Per Minute (IPM) High: 0 – 28,500 / Low: 0 – 7,500
Capacity (Masonry / Steel / Wood) Masonry: 13 mm / Steel: 13 mm / Wood: 38 mm
Dimensions (L x W x H) 164 mm x 81 mm x 248 mm
Net Weight 1.4 – 1.7 kg
